Description
The CryoTec is specifically designed for Cryogenic applications, e.g.: Ethylene and LNG
Available from 6" up to 20", suitable for all liquids and gasses between -196 and + 200°C
Key Features
Hydraulic operation with smart hydraulic mechanism
Cable free design with adjustable balancing link
Supported structure
Only six swivel joints required with minimal jetty loads.
Cartridge type swivel joints
Nitrogen dried swivel joints
Double Ultra High Molecular weight PE Seal
Static back-up seal
Modular design suitable for container shipment
10 years guarantee
Technical Details
Hydraulically operated
Dedicated hydraulic solenoid valves for each Marine Loading Arm
Completely balanced
6" up to 20"
-196 °C / + 200 °C
Suitable for all (petro-) chemicals, liquids and gases. Especially cryogenic applications
150# and 300#
Available in all Stainless Steel and Stainless Steel 316Ti.
Contact Us
Technical Details

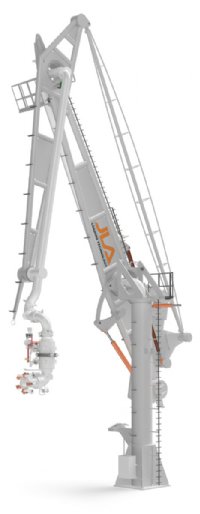

CryoTec Marine Loading Arm
